The Swiss e-bike system

maxon has been developing and building precision electric drives for 60 years. Our technology is designed to deliver maximum performance in the smallest possible space. Efficient and absolutely reliable: maxon’s drives are used in robots, vehicles, and devices all over the world – and even in rovers on Mars.

This experience has helped us to develop an e-bike system with a lightweight mid-mounted motor which provides natural support when needed and can be integrated out of sight inside elegant frames. The compactness of the system means that manufacturers of racing, gravel, urban, kids’, and mountain bikes can still use traditional frame designs.

The complete system developed by maxon weighs only 3.5 kg, is integrated out of sight in the frame and has an innovative freewheel that ensures a natural riding experience. Support can be activated at the press of a button. When the rider exerts more pressure on the pedals, the torque sensor immediately responds with more power.

Drive Unit

Super compact, virtually silent and natural

40
Nm
max. torque
115
rpm
max. supported cadence
25
km/h
speed
1.9
kg
weight

The drive unit consists of a brushless maxon EC internal-rotor motor and a single-stage performance planetary gearhead. With the e-bike system, down tube designs with diameters as small as 60 mm are possible. The Q factor starts at only 155 mm and the innovative freewheel has no noticeable resistance. It is possible to mount either racing or MTB chain rings.

Battery

360 Wh, fully integrated

36
V
voltage
360
Wh
capacity
5
hours
for a full charge
1.8
kg
weight

The lithium-ion battery is permanently mounted in the down tube and can only be removed by the specialist dealer, if necessary. It combines low weight (1.8 kg) with an energy capacity of 360 Wh.

250 Wh, fully integrated

36
V
voltage
250
Wh
capacity
3.5
hours
for a full charge
1.4
kg
weight

The lithium-ion battery is permanently mounted in the down tube and can only be removed by the specialist dealer, if necessary. It combines low weight with an energy capacity of 250 Wh. At only 1.4 kg, it weighs roughly the same as a large bottle of water.

Range Extender

250 Wh, Powerbank

36
V
voltage
250
Wh
capacity
3.5
hours
for a full charge
1.4
kg
weight

A Range Extender is available for longer rides and adds another 250 Wh. It works like a power bank and charges the integrated battery. The Range Extender can be stored in your backpack or inserted in a BIKEDRIVE AIR bottle holder and connect to the system with a cable.

Motor and battery are fully integrated

Interface

Focus on the essentials

Battery display (SOC)
3 support levels: Cruise, Push, Blast
Bluetooth (BLE) and ANT+
Light switch (optional)

The HMI gives you full control over your e-bike. You can connect it to your smartphone via Bluetooth (BLE), or to other devices from Garmin, Sigma, or o-synce via ANT+. You can choose between three levels of support and configure them individually. In the factory settings, there are three preset modes: Cruise (gentle tailwind), Push (sport mode), Blast (lots of power for steep inclines). An inconspicuous and intuitive shifter for the racing bike or mountain bike handlebars is available as an option.

Apps for individualization, transparency, and service

maxon offers a connect app and a service app for iOS and Android. With the connect app, the cyclist can individually tune the support levels. The Service app is a tool that allows bicycle mechanics to quickly perform troubleshooting and order spare parts.

Connect app

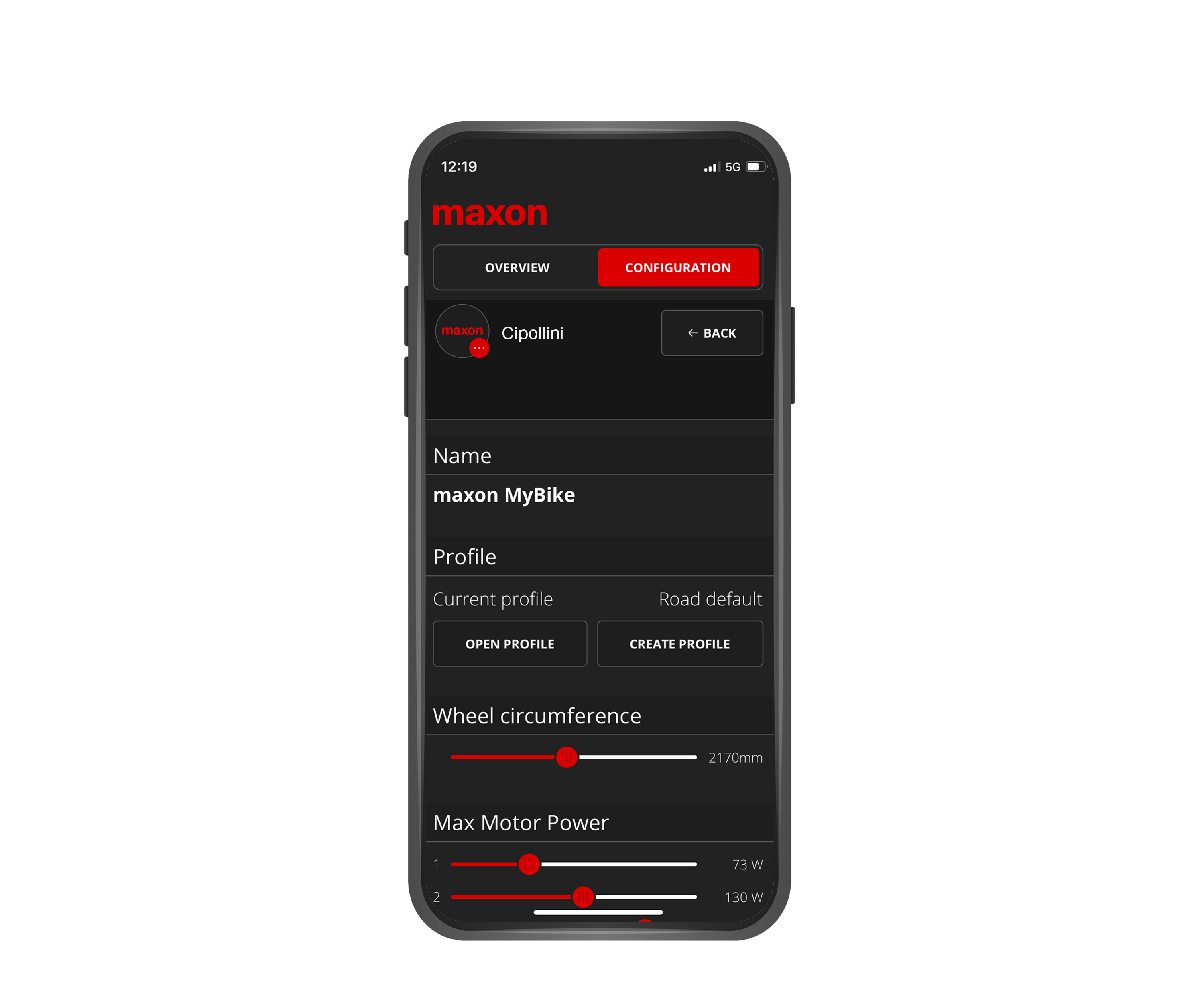

Service app
